ECO-800CI

Item No.	ECO-800CI
Operation Interface	Touch Screen
Imput Voltage	100-240V,50/60Hz
Working Frequency	100kHz±10%
Output Power	Ablation cutting≤350W Coagulation≤150W
Working Temperature	40-70℃

INQUIRE NOW

DOWNLOAD CATALOG

Description Advantages Electrode Application Video

Under the low frequency electric field of 100kHz, a plasma thin layer with a thickness of about 100 μm is formed around the electrode by normal saline. The plasma thin layer is composed of high-energy ions. These particles have enough kinetic energy to break the organic molecular bonds of the target tissue and make it vaporized and cracked into gas.

The low-temperature plasma technology of ECO can realize the functions of tissue cutting, ablation and coagulation at a low temperature of 40-70°C, which can effectively avoid the defects of high temperature, deep damage, large amount of bleeding, and negative plate sticking.

ECO ENT RF Plasma Surgical System - for ENT

● The core algorithm can maintain a temperature as low as 42°C.

● The core algorithm optimizes the power output curve,enhances coagulation, and continuously maintains alow temperature during operation.

● The intelligent closed-loop control system allows for efficient and stable operation.

● SP/PK arcing shortens the operation time.

SP/PK arcing can reach rapid arcing within 1-2 seconds under normal saline, with a high plasmaexcitation rate, shortening the operation time.

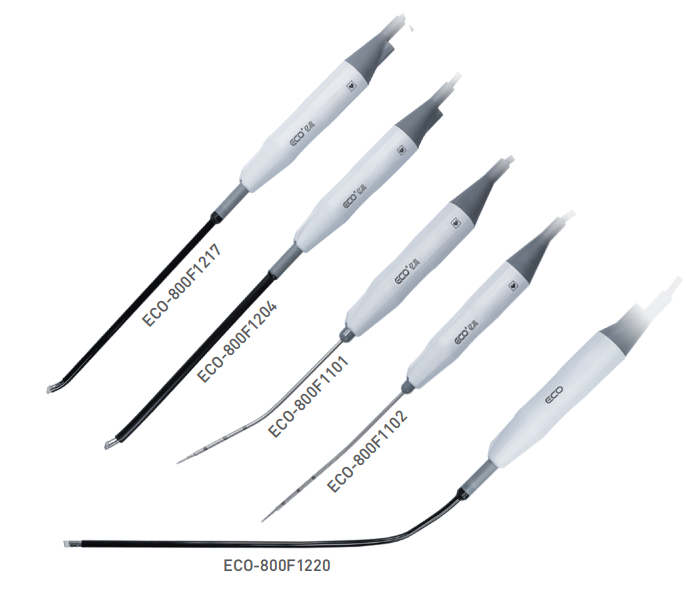

Various types of electrodes and wide range of applications

Three stages of active tips are integrated for cutting, ablation, and coagulation. The first and second stages can be used for cutting and ablation, and all three stages can be used for coagulation.
Electrodes are mainly used in nasal treatments, such as the removal of tonsil and adenoid, UPPP, and CAUP The active tips of the electrodes are made of platinum material
for sharper cutting.
Electrodes are mainly used in the cutting of laryngeal papillomas and laryngeal growths. The small-diameter and ultra-long electrode design can make the intraoperative vision clearer and the operation site more in-depth.
vision clearer and the operation site more in-depth.

Model No.	Clinical Use
ECO-800F1101	Turbinate ablation
ECO-800F1102	Turbinate ablation
ECO-800F1204	Tonsillectomy, Adenoidectomy
ECO-800F1217	Tonsillectomy, Adenoidectomy
ECO-800F1220	Laryngeal lesion ablation
